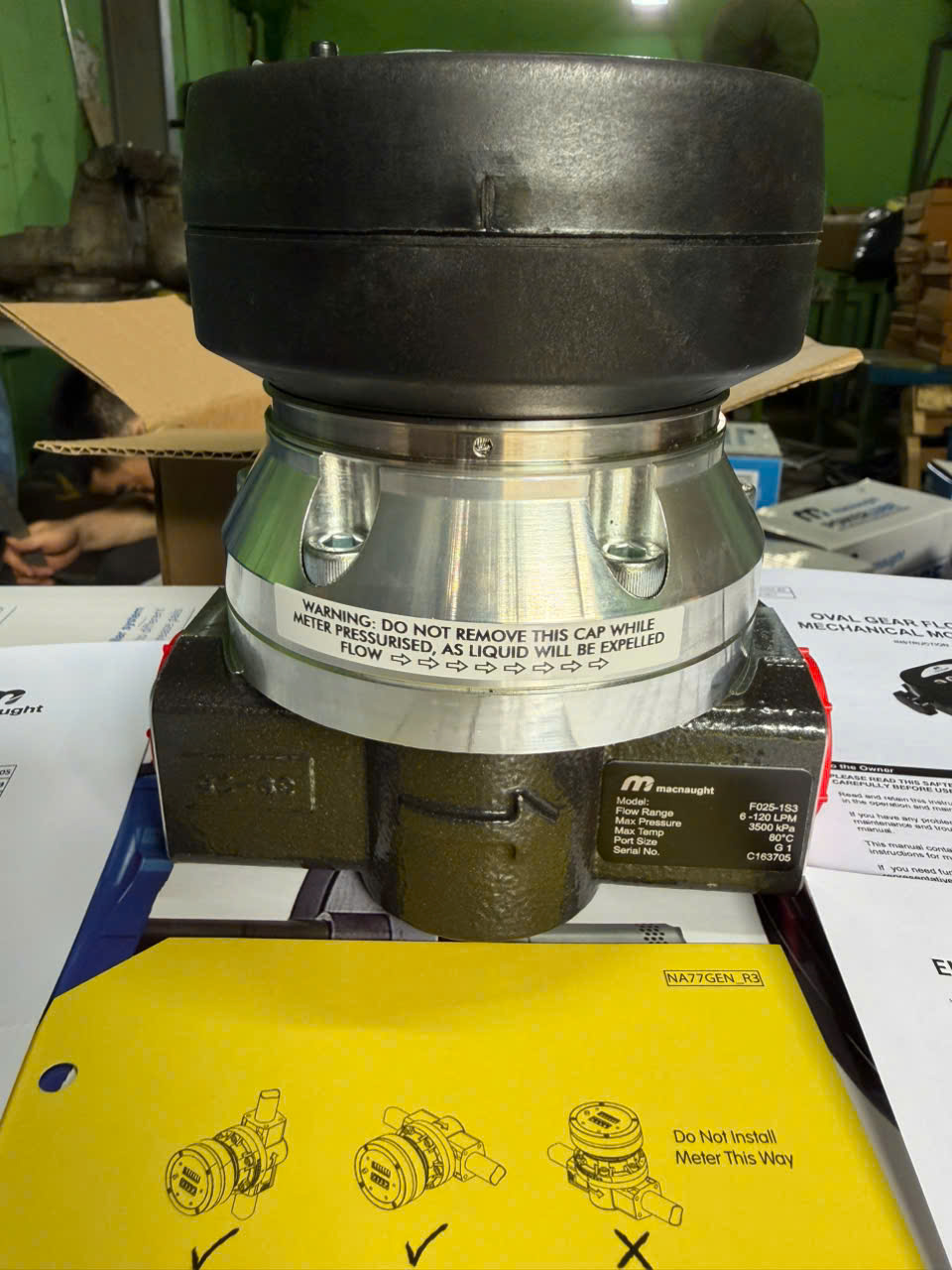

FLOW METER 1" BSP LTR STD.ROTORS, SD MECH. REG - PN# F025-1S3
The M Series 1" MECHANICAL FLOW METER are suitable for flows between 6 - 120 L/min (1.59 - 31.70 GPM). The M Series offers ±1.00% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.
- Mã SP:F025-1S3
Giá: Liên hệ
Thông tin chi tiết
FLOW METER 1" BSP LTR STD.ROTORS, SD MECH. REG - PN# F025-1S3
Invest with Confidence: Macnaught's Warranty is the Best in the Business
The M Series 1" MECHANICAL FLOW METER are suitable for flows between 6 - 120 L/min (1.59 - 31.70 GPM), providing highly accurate flow measurement performance. The M Series offers ±1.00% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.
Key features include:
- Cast Aluminium construction
- FKM (Viton) seals
- Maximum flow rate 120 L/min / 31.70 GPM
- Accuracy of ±1.00% of reading
- Exceptional repeatability of ±0.03%
- Temperature up to 80 °C / 176 °F
- 1 point factory calibration as standard, with additional points upon request
Specifications
| Model number | F025-1S3 | ||
Material of construction Meter Body Rotor Seals |
Cast Aluminium PPS FKM (Viton) | ||
Design Specifications Process Connections | 1" G Thread [w/ litresmech display] | ||
Technical Specifications <5cPr
>5cP
Non lubricating fluids
Operating Temperature Range** | min | max | |
10 2.64 6 1.59 - - -40 -40 |
100 26.42 120 31.70 120 31.70 80 176 |
L/min GPM L/min GPM L/min GPM °C °F | |
Accuracy (±%) Repeatability (±%) Nominal K-Factor
| 1.00% 0.03% - Pulses/Litre - Pulses/Gallon | ||
| Standard Mechanical |
| Construction | Polypropylene |
| IP Rating | IP56 |
Temp
| Min: - Max: - °C Min: - Max: - °F |
EX Approvals
| - Please refer to instruction manual and certification |
Display Digit size (upper/lower) Accumulated total Resettable total Preset total Flow rate |
5mm/5mm ✔️ ✔️ ❌ ❌ |
Outputs 4-20 mA (passive) Pulse/Transistor Output Flow Alarm Batch Control output |
❌ ❌ ❌ ❌ |
