Macnaught 50:1 Air-Operated Grease Pump for 400 lb./55 Gal. Containers

Macnaught%20501%20Air-Operated%20Grease%20Pump%20for%20400%20lb_55%20Gal_%20Containers-1

Macnaught%20501%20Air-Operated%20Grease%20Pump%20for%20400%20lb_55%20Gal_%20Containers-2

Mã SP:PN# P8-11

Giá: Liên hệ

GREASE PUMP MACNAUGT - BƠM MỠ MACNAUGT P3,P8

Liên hệ 0973 496 437

Thông tin chi tiết

Famous Global Australian Brand - since 1948

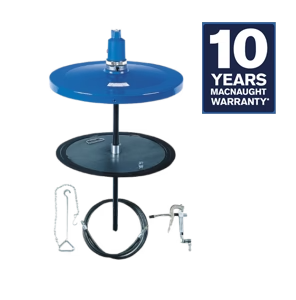

Macnaught’s 50:1 Premium air-operated/pneumatic grease pumps are excellent for high-volume grease applications requiring continuous high-pressure grease output. These portable grease pump systems are engineered for 400 lb./55 Gal. containers. They are equipped with a low air consumption motor that doesn’t need to be lubricated due to the use of modern polymer materials. Users will save on power and avoid the oily mist and mess typically associated with air-operated equipment. Macnaught grease pumps are suitable for a wide range of heavy-duty applications and come complete with the industry’s leading 10-year warranty. Includes Booster Gun.

Macnaught P8-11 Specifications

Model number	P8-11 – maxilube®
Pump ratio	50:1 Ratio
Max pump output pressure	7,500 psi / 517BAR
Max gun output pressure	10,000 psi / 689BAR
Bare pump	P8001
Suited to continers	400lb / 180kg – 55 Gal.
Hose	8ft x 1/4in ID delivery hose (2.5m x 6mm)
Control gun	B2 Booster Gun with ZSB swivel
Output at gun	16 oz/min (460 g/min)
Airline Lubricator	Not required
Fully serviceable	✔
Warranty	10 years
Parts guarantee	10 years
Grease viscosity	Up to NLGI No.2
Wetted components	Zinc, Hard Chrome-plated Carbon Steel, Brass, Nitrile and Polyurethane Rubber
Max air pressure	150 psi
Min air pressure	60 psi
Air inlet	1/4″ NPT (F)
Pump Outlet	1/4″ NPT (F)
Min compressor size	3 cfm (0.08m³/ min)

Macnaught P8-11 Data Sheet: PDF

Macnaught P3-P6-P8 Air Operated Grease Pumps Instruction Manual: PDF

Macnaught P3-01C Features and Benefits

Industry Leading 10-year Warranty
Zinc components – For underground mining applications
50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output
Non-corroding air motor design – No airline lubricator required. Easy and low cost to repair
Quiet air motor design – Meets all industry noise level standards
8’ ft high-pressure grease hose – Extra hose length for easier access to difficult applications
B2 Booster Gun – Boosts greasing pressure up to 10,000 psi
360° ZSB Swivel – Improves greasing flexibility and offers easier one-handed operation
KY Supergrip three-jaw high-pressure coupler – Positive no leak connection
Rubber-edged follower plate – Prevents air pockets and contamination
Fully sealed greasing system with built-in grease strainer – Clean grease delivery every time
Fully repairable – Provides a longer service life
