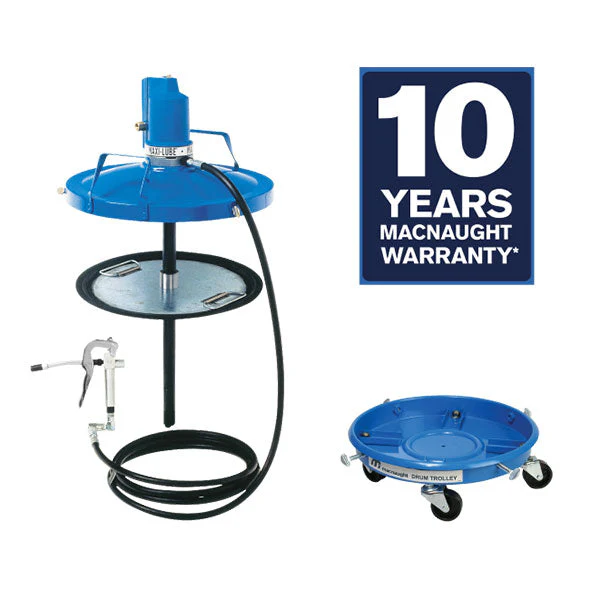

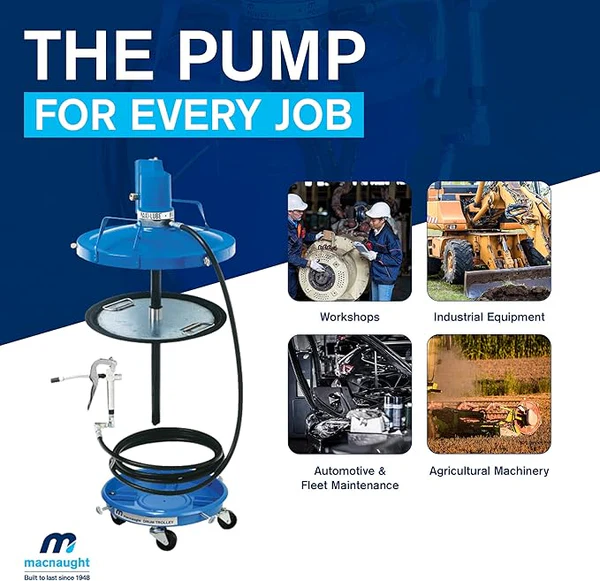

Macnaught Air Operated Grease Pump for 120lb./16 Gal. Containers
Thông tin chi tiết
Famous Global Australian Brand - since 1948
Engineered for 120 lb./16 Gal. containers. Our Pneumatic Grease pumps have low air consumption motor & don’t need to be lubricated due to the use of modern polymer materials. Quiet air motor design – Meets all industry noise level standards. Includes the B2 Booster Gun – Boosts greasing pressure up to 10,000 psi. 50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output. Users will save on power and avoid the oily mist and mess typically associated with air-operated equipment.
Zinc components – For underground mining applications. Fully repairable – Provides a longer service life. Rubber-edged follower plate – Prevents air pockets and contamination. Macnaught air powered grease pumps are suitable for heavy-duty applications and comes with the industry’s leading 10-year warranty.
Macnaught P6-TR Specifications
| Model number | P6-TR – maxilube® |
| Pump ratio | 50:1 Ratio |
| Max pump output pressure | 7,500 psi / 517BAR |
| Max gun output pressure | 10,000 psi / 689BAR |
| Bare pump | P6003 |
| Suited to containers | 120lb / 55kg |
| Hose | 13ft x 1/4in ID delivery hose (4m x 6mm) |
| Control gun | B2 Booster Gun with ZSB swivel |
| Output at gun | 16 oz/min (460 g/min) |
| Airline Lubricator | Not required |
| Fully serviceable | ✔ |
| Warranty | 10 years |
| Parts guarantee | 10 years |
| Grease viscosity | Up to NLGI No.2 |
| Wetted components | Zinc, Hard Chrome-plated Carbon Steel, Brass, Nitrile and Polyurethane Rubber |
| Max air pressure | 150 psi |
| Min air pressure | 60 psi |
| Air inlet | 1/4″ NPT (F) |
| Pump Outlet | 1/4″ NPT (F) |
| Min compressor size | 3 cfm (0.08m³/ min) |
Macnaught P6-TR Data Sheet: PDF
Macnaught P3-P6-P8 Air Operated Grease Pumps Instruction Manual: PDF

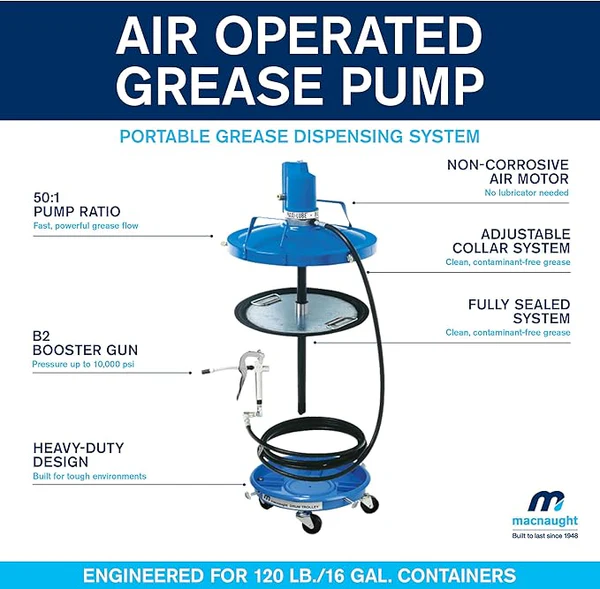

Macnaught P6-TR Features and Benefits
Industry Leading 10-year Warranty
Zinc components – For underground mining applications
50:1 ratio air motor delivers up to 16 oz/min of fast, efficient grease output
Non-corroding air motor design – No airline lubricator required. Easy and low cost to repair
Quiet air motor design – Meets all industry noise level standards

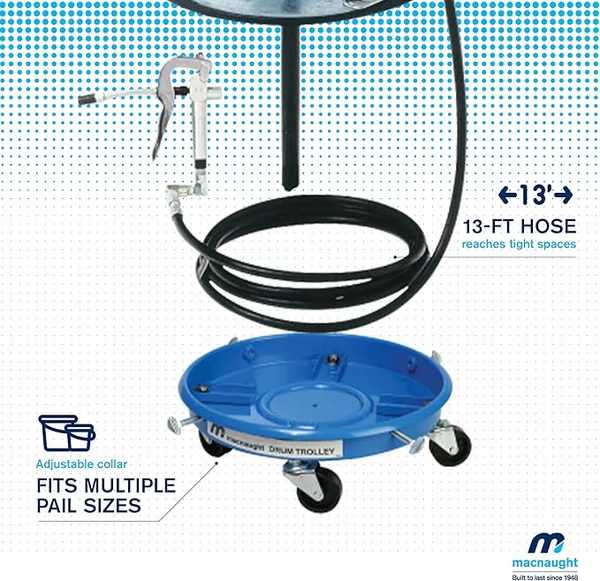

13’ ft high-pressure grease hose – Extra hose length for easier access to difficult applications
B2 Booster Gun – Boosts greasing pressure up to 10,000 psi

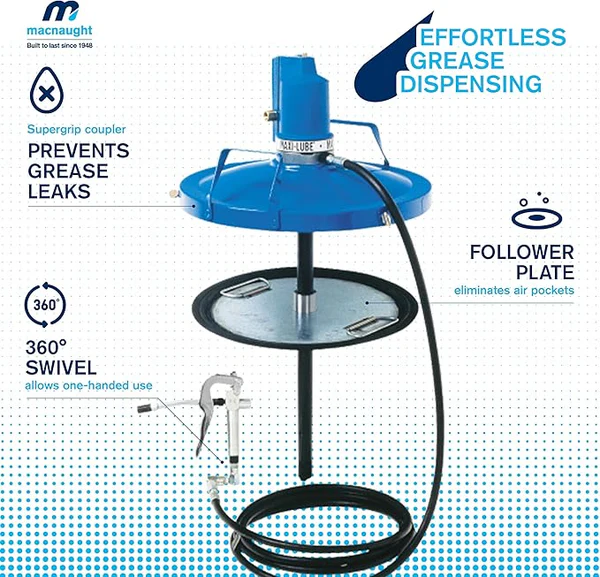

360° ZSB Swivel – Improves greasing flexibility and offers easier one-handed operation
KY Supergrip three-jaw high-pressure coupler – Positive no leak connection
Rubber-edged follower plate – Prevents air pockets and contamination
Fully sealed greasing system with built-in grease strainer – Clean grease delivery every time
Heavy duty Trolley with wheels

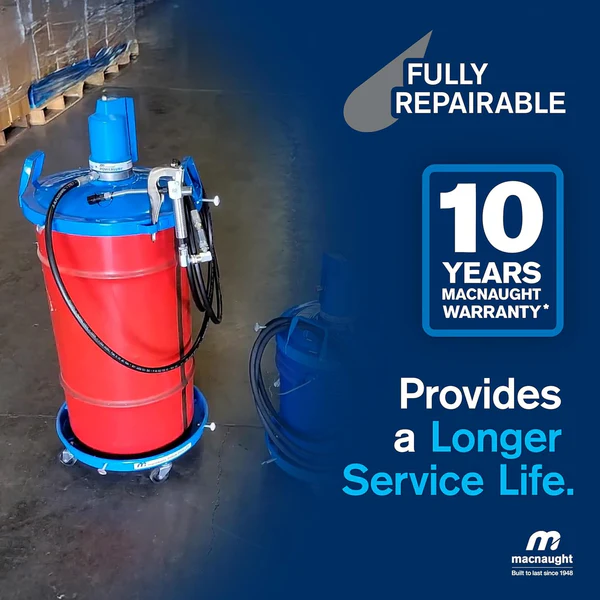

Fully repairable – Provides a longer service life
