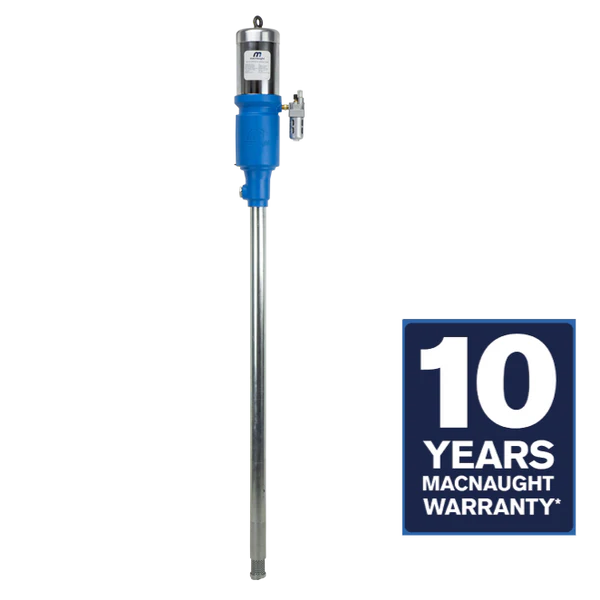

Macnaught High Volume Heavy Duty Air Operated Grease Pump – Bare Pump
Thông tin chi tiết
Famous Global Australian Brand - since 1948
The P58 Maxilube is the latest high performing heavy duty air operated grease pump manufactured by Macnaught. Designed, engineered and manufactured in Australia, the P58 now provides you with a high performing, high pressure grease pump along with the Macnaught performance reliability and service. Macnaught air powered grease pumps are suitable for heavy-duty applications and comes with the industry’s leading 10-year warranty.
This high flow grease pump is fitted with a 58:1 ratio air motor and is designed to fit 180kg (400lbs) grease containers. With a grease output of up to 6.8kg per minute (free flow), it is ideal for large system installations such as service bays.
Air Operated Grease Pump Only- High Volume for 400 lb. Drums, BSP, no lid or follower
Macnaught P58-01 Specifications
| Model number | P58-01 |
| Pump ratio | 58:1 Ratio (grease pressure is 58 times air pressure) |
| Air Pressure Operating Range | 60 to 150psi |
| Air Consumption | 23.5 SCFM (@120psi pressure, 20°C) |
| Max Fluid Outlet Pressure | 8700psi (59, 900 kPa) |
| Air Motor Diameter | 4.1″ (104.7mm) |
| Max free Flow Delivery Rate | 13lb/min |
| Air Inlet Size | 1/4″ NPT |
| Fluid Outlet Size | 3/8″ NPT |
| Wetted and Seal Materials | NBR |
| Noise Level | 85 dB(A) (@120 psi) |
| Air Lubricator Included | Yes |
| Parts guarantee | 10 years |
| Grease viscosity | Up to NLGI No.2 |
| Pump Tube Diameter | 41.3 mm O.D. |
| Pump tube height | 960 mm |
| Weight | 13kgs |
Macnaught P58-01 Data Sheet: PDF
Macnaught P58-01 Operations Manual: PDF
Macnaught P58-01 Features and Benefits
Industry Leading 10-year Warranty
Zinc components – For underground mining applications
58:1 ratio air motor delivers 13 pounds of grease free flow
Quiet air motor design – Meets all industry noise level standards
8’ ft high-pressure grease hose – Extra hose length for easier access to difficult applications
B2 Booster Gun – Boosts greasing pressure up to 8,700 psi
360° ZSB Swivel – Improves greasing flexibility and offers easier one-handed operation
KY Supergrip three-jaw high-pressure coupler – Positive no leak connection
Rubber-edged follower plate – Prevents air pockets and contamination
Fully sealed greasing system with built-in grease strainer – Clean grease delivery every time
Fully repairable – Provides a longer service life
