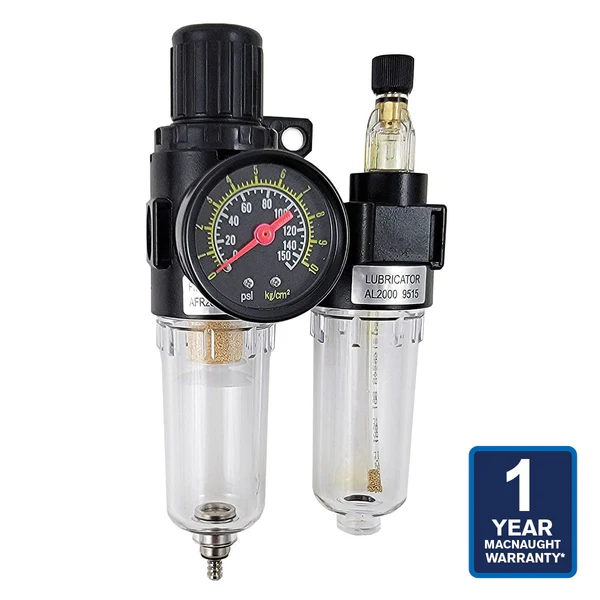

Macnaught M3 Filter Regulator and Gauge with Lubricator
Thông tin chi tiết
Filter, Regulator & Gauge with Lubricator Kit
Macnaught’s M3 ARL-25 adjusts inlet air pressure from 0-150 PSI and removes, dirt, dust, and moisture from compressed air service. Auto discharge of moisture design and provides lubrication for pneumatic equipment all in one unit.
Filter, Regulator & Gauge with Lubricator Kit Manual – PDF
Specifications:
Inlet and Outlet: ¼”
Pressure Gauge Range: 0-150 PSI
Over Pressure Maximum: 175 PSI
Operating Temps: 41F to 140F
Filter Element: 40 Micron
Lubrication Type: ISO VG32 Compressor Oil
Warranty: 1 Year
