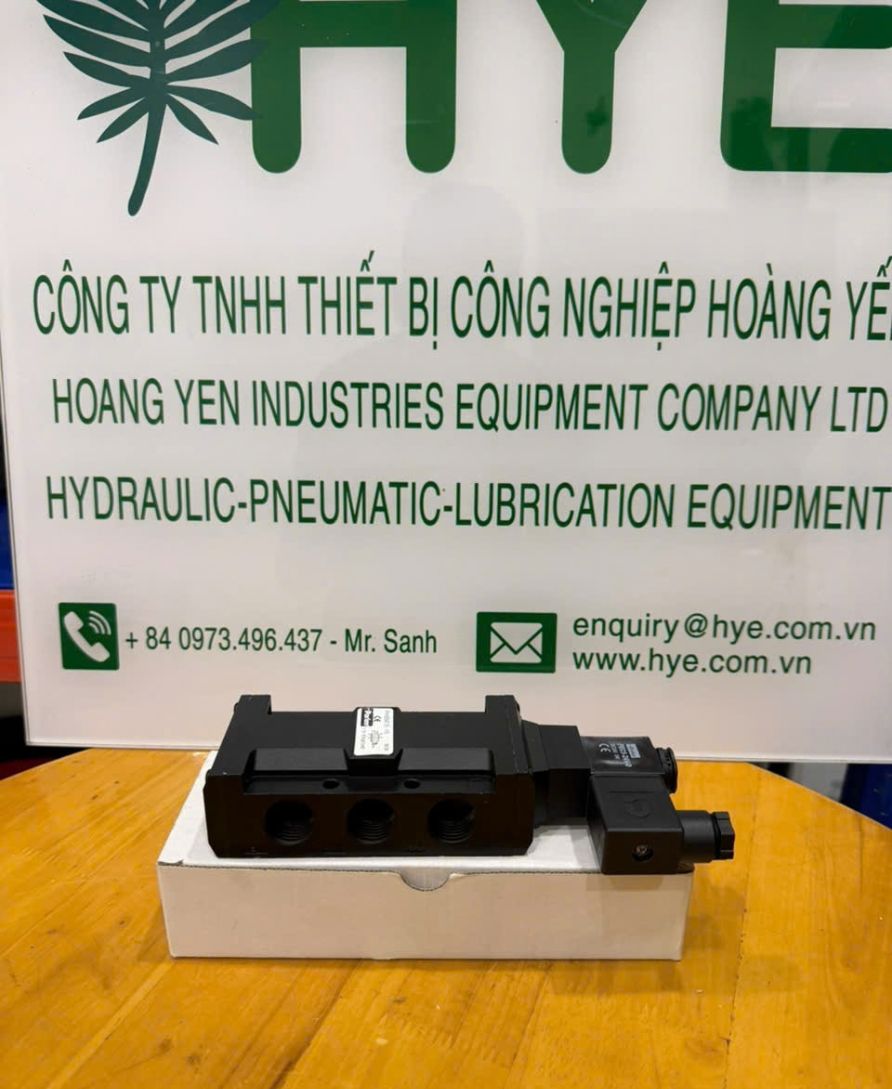

PHS541S-15 | PARKER | 5/2 PNEUMATIC SOLENOID VALVE

Key Features

• 5/2-way directional control valve
• Single solenoid operation
• Pilot-operated spool valve construction
• 1/2-inch Rc threaded ports
• High-flow design with Cv 3.0
• Soft-seal construction with NBR seals
• Aluminum valve body
• Designed for non-lubricated compressed air
• Approximate response time of 50 ms
• IP65 protection
• DIN connector wiring
• Standard push-button manual override; lever-type operation available as an option
• CE-marked version available
• Solenoid replacement is designed for easy maintenance
• Long service life, with Parker specifying an expected life of approximately 20 million operations for the PHS series.

Product Advantages

The Parker PHS541S-15 combines a compact direct-piping design with relatively high flow capacity, making it suitable for pneumatic directional-control applications where dependable switching and good air-flow performance are required.

Its Cv 3.0 flow rating for the 1/2-inch version provides higher flow capacity than the smaller PHS510 series. The aluminum body helps maintain a robust yet practical construction, while NBR soft seals support reliable spool operation with compressed air.

The valve also supports DIN-connector wiring and IP65 protection, making it suitable for installation in industrial pneumatic control systems where electrical connection and environmental protection are important considerations.

Applications

The PHS541S-15 can be used for directional control of pneumatic actuators and other compressed-air equipment, including:

• Pneumatic cylinders and actuators
• Industrial automation equipment
• Factory automation systems
• Pneumatic machinery
• Packaging machinery
• Material handling equipment
• Clamping and positioning systems
• Machine control systems
• General industrial compressed-air circuits

The 5/2 configuration is particularly suitable for controlling double-acting pneumatic cylinders, allowing the valve to direct compressed air alternately to the two sides of the actuator.

Operating Principle

The PHS541S-15 uses a single-solenoid, spring-return 5/2 configuration.

When the solenoid is energized, the internal spool shifts and changes the compressed-air flow path between the valve ports. When the solenoid is de-energized, the spring returns the spool to its original position.

This configuration provides two stable operating positions controlled by one electrical solenoid and a mechanical spring return. Parker identifies PHS541S as the single-solenoid version, while PHS541D is the double-solenoid version.

Maintenance & Reliability

The PHS series is designed for industrial pneumatic applications and can operate in a non-lubricated compressed-air environment, meaning additional lubrication is not normally required when the air supply meets the specified conditions.

Parker specifies an expected service life of approximately 20 million operations for the PHS series and provides replacement seal/plunger repair kits for PHS541 valves.

For reliable operation, the compressed-air supply should be properly filtered and maintained within the specified pressure and temperature range.

Performance Information

For the PHS541 1/2-inch configuration:

• Effective cross-sectional area: 56 mm²
• Flow coefficient: Cv 3.0
• Approximate flow capacity at 7 bar: 4,700 L/min
• Response time: 50 ms or less
• Operating pressure: 1.5–9 bar
• Suitable for non-lubricated compressed air
• Individual pilot exhaust configuration.

Technical Specifications

Data sheet: PDF
