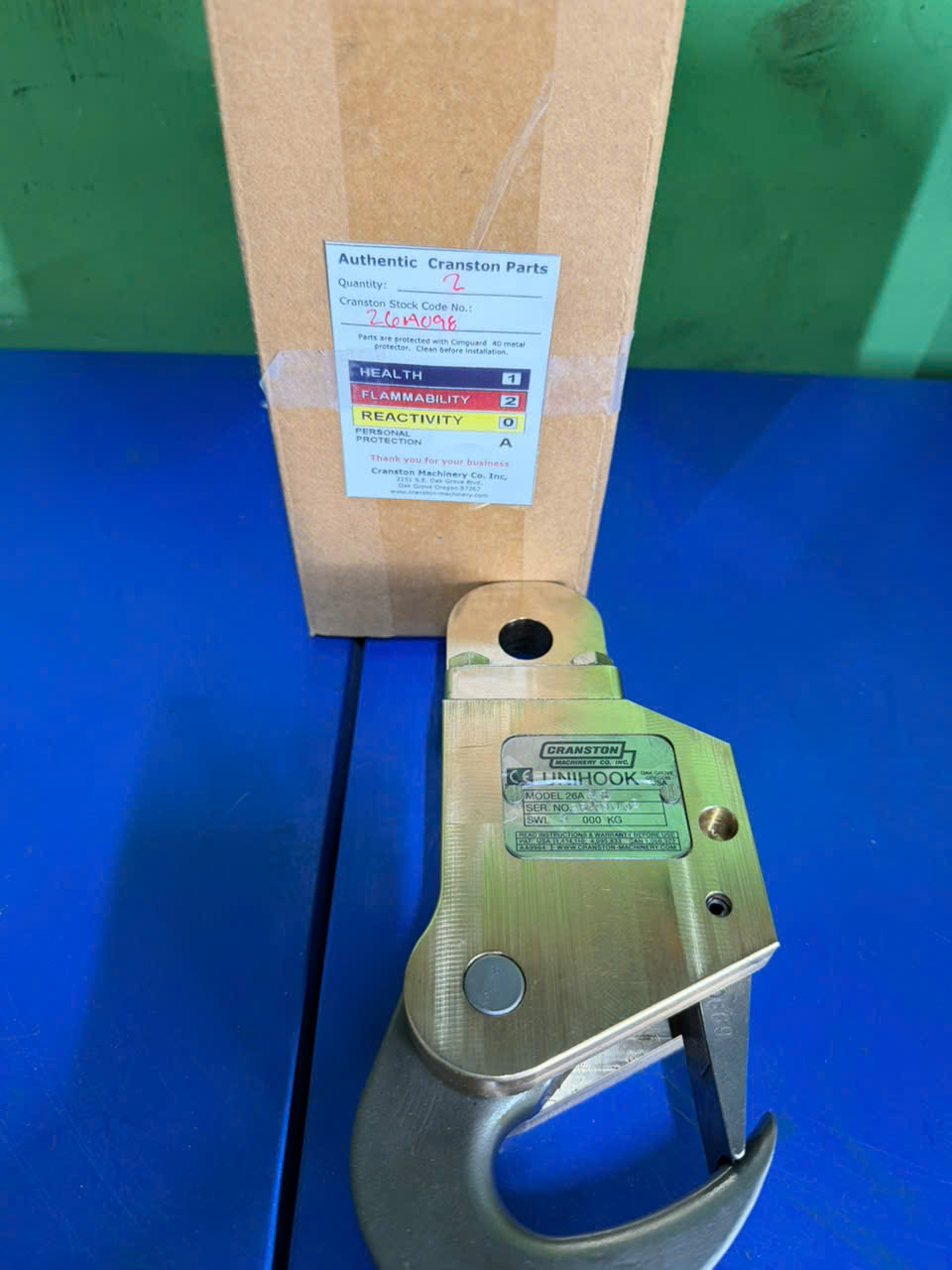

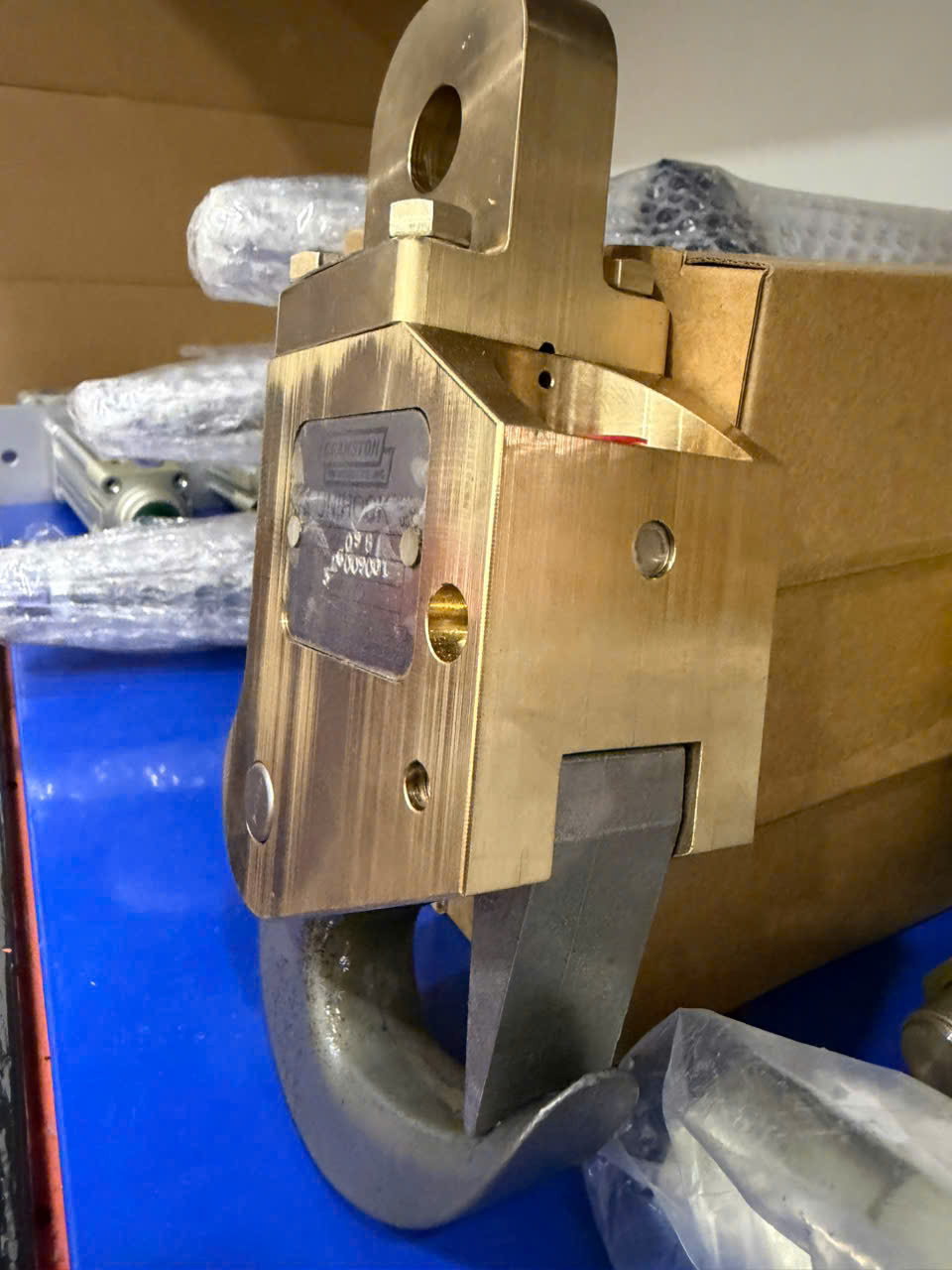

26A098 - Lifting Hook - UNIHOOK
The UNIHOOK 26A098 Lifting Hook is a very robust, marine grade, lifting device, designed to provide remote release of a pre-slung load.
- Mã SP:26A098
Thông tin chi tiết
26A098 - Lifting Hook - UNIHOOK
The UNIHOOK 26A098 is a robust lifting hook specifically developed for lifting and transporting steel coils in manufacturing plants, warehouses, service centers, and logistics operations.
Manufactured from high-strength steel, the hook is designed to provide excellent load capacity, durability, and operational safety. It can be integrated with overhead cranes or other lifting equipment to ensure efficient and secure material handling while reducing the risk of coil damage.
Its heavy-duty construction and optimized hook geometry make it suitable for demanding industrial environments requiring reliable lifting performance.
Key Features
- Genuine UNIHOOK lifting hook
- Designed for steel coil handling
- Heavy-duty construction
- High-strength steel design
- Suitable for overhead crane systems
- Reliable and safe lifting performance
- Long service life
- Easy integration with lifting equipment
Applications
- Steel mills
- Coil processing lines
- Warehouses
- Logistics centers
- Manufacturing plants
- Material handling systems
- Overhead crane operations
Technical Specifications
Specification | Value |
|---|---|
Safe Working Load (SWL) | 3 Metric Tonnes |
Design Safety Factor | 4 × SWL |
Certified Test Load | 2 × SWL (Each UNIHOOK™) |
Operating Temperature | -35°C to +175°C |
Typical Weight | 5 kg (11 lb) |
Maintenance Guidelines | CS005 - Guidelines for Maintenance, Use and Care |
Top Cap Type | Fixed |
Pivoting Hook Material | Wear Resistant Steel |
CE Compliance | Yes |
Underwater Release Tested | Yes |
Data sheet: PDF
