MLP-D/G-211C - Gear Pump - Bondioli & Pavesi

40530012880 PUMP; MLP-D/G-211C;11 LI/MIN AT 1000 RPM

Mã SP:HPLPA211DMLG4G4B00 (11cc)

Giá: Liên hệ

Bơm

Liên hệ 0973 496 437

Thông tin chi tiết

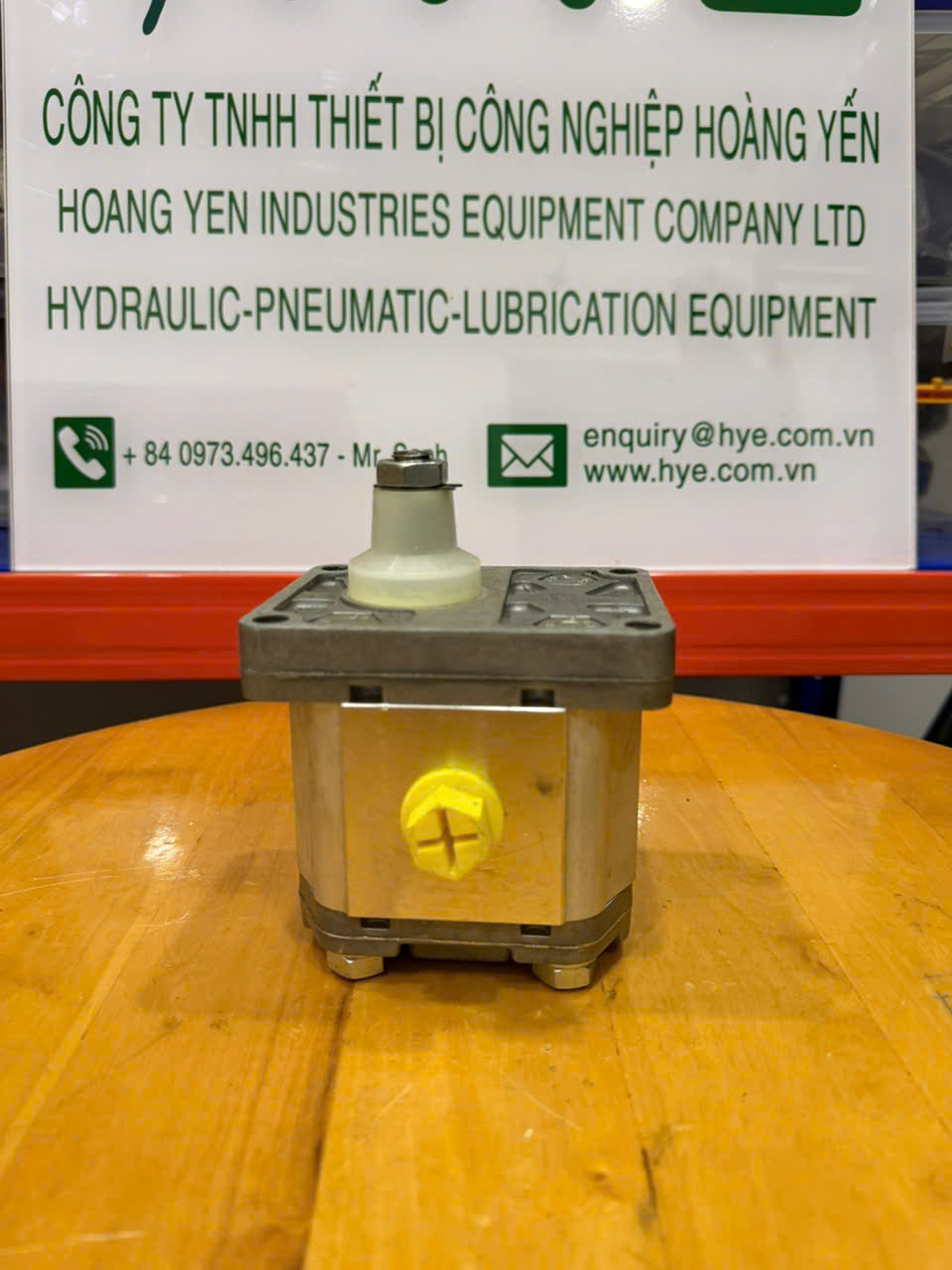

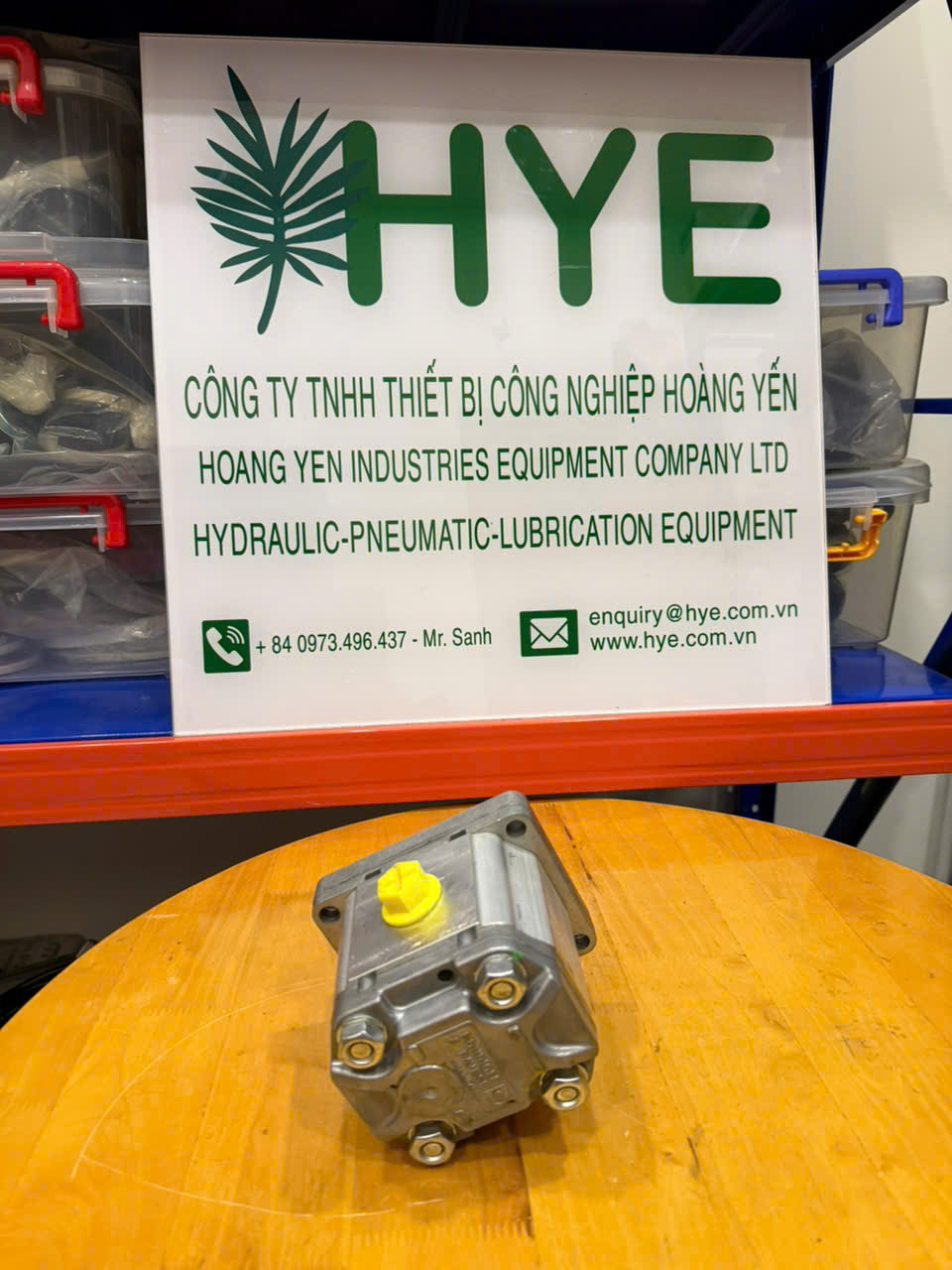

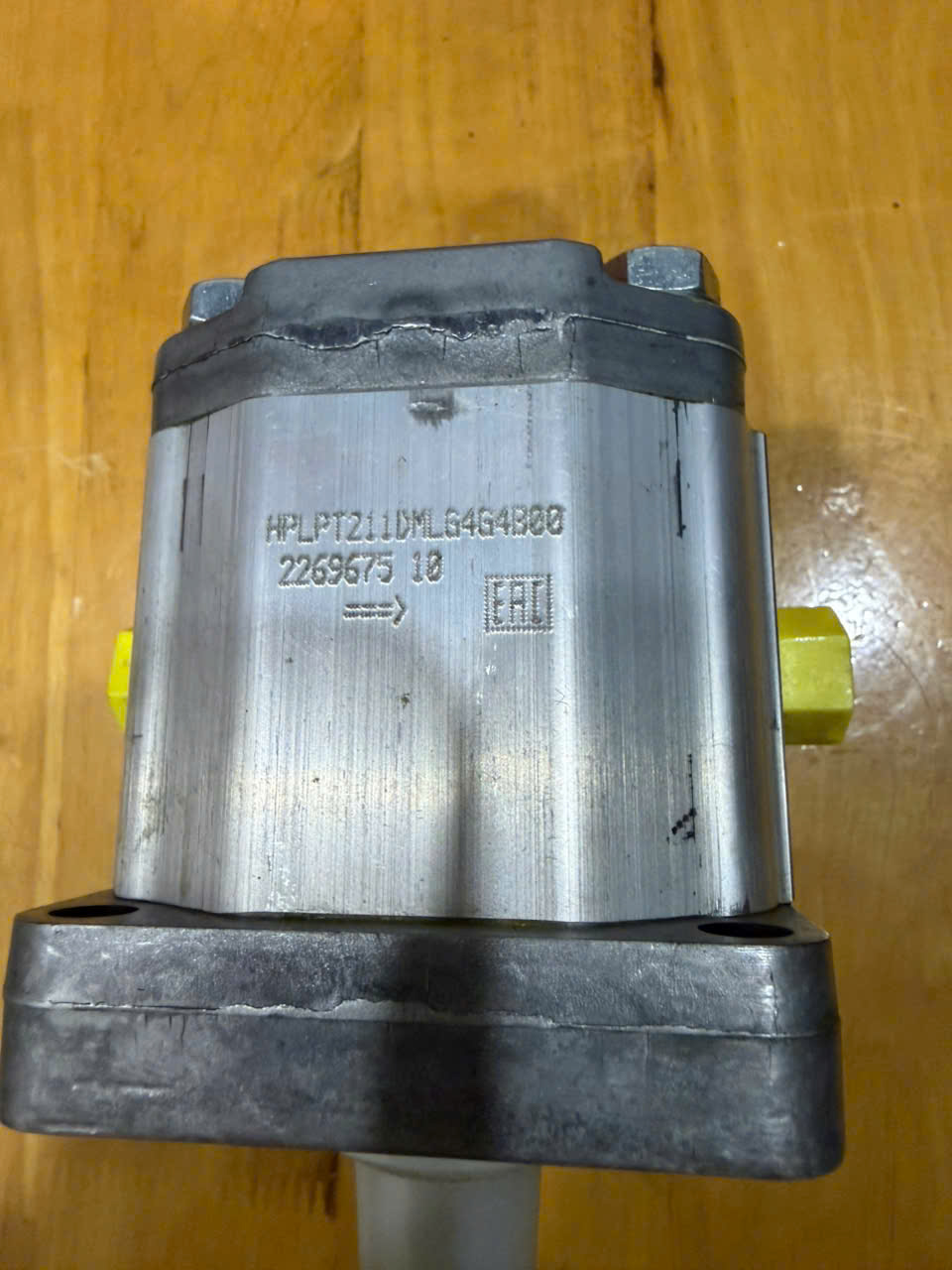

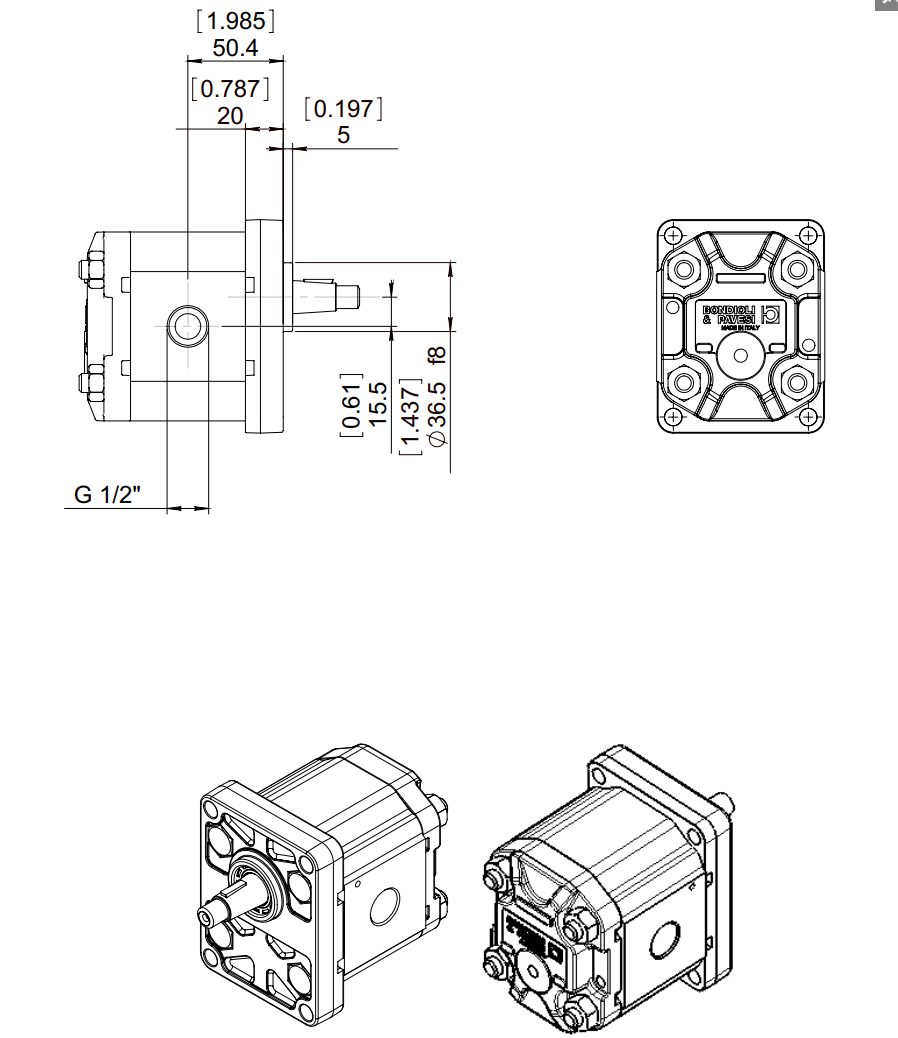

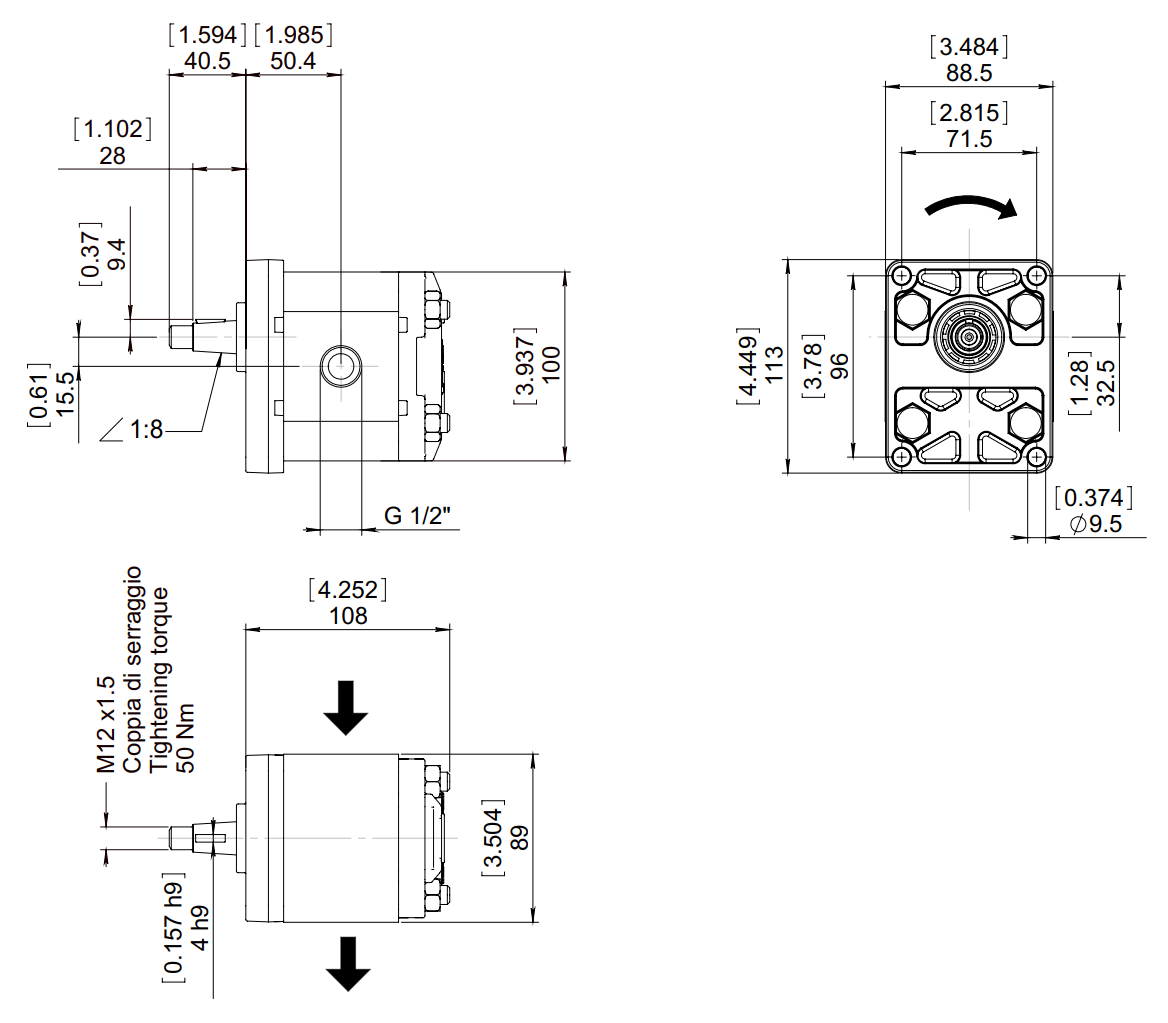

MLP-D/G-211C - Gear Pump - Bondioli & Pavesi

The MLDP/G-211 C is an external hydraulic gear pump manufactured by Bondioli & Pavesi, engineered to deliver dependable hydraulic performance in a wide range of mobile and industrial applications.

Its robust construction, compact design, and high volumetric efficiency make it suitable for continuous-duty hydraulic systems where consistent oil flow and reliable operation are essential. The pump is commonly installed on agricultural machinery, construction equipment, lifting systems, and hydraulic power units.

Key Features

Genuine Bondioli & Pavesi hydraulic gear pump
External gear pump design
Compact and lightweight construction
High volumetric efficiency
Stable hydraulic oil flow
Reliable performance under continuous operation
Long service life
Easy installation and maintenance

Technical Specifications

Cilindrata - Displacement	11 [cc] - 0,67 [in3]
Rotazione - Rotation	destra - clockwise
P.max. continua - Max.continuous pressure	230 [bar] 3336 [psi]
P.max. intermittente - Max.intermittent pressure	250 [bar] 3626 [psi]
P.max. di picco - Max.peak pressure	280 [bar] 4061 [psi]
Velocità - Speed	min 700 [rpm] max 3500 [rpm]
Guarnizioni - Seals type	NBR
Temperatura di esercizio Operating temperature	-20 ...+85 [°C]
Campo di viscosità - Viscosity range	raccomended 12 - 100 mm2/s permitted: max. 750 mm2/s
Classe di contaminazione - Contamination class	P>150 bar 8 - Nas 1638 P<150 bar 10 - Nas 1638
Coppia max. Maximum torque	140 [Nm]
Pressione assoluta in entrata - Inlet pressure	0,7 …3,0 [bar]
