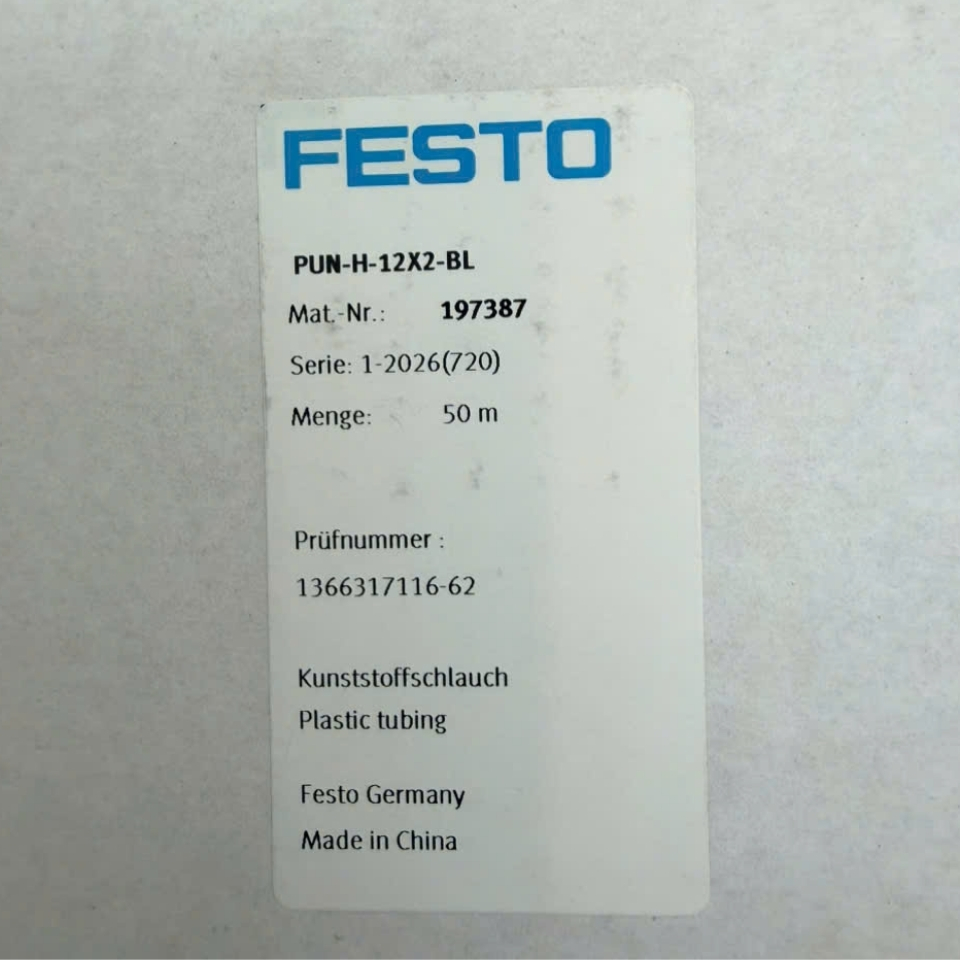

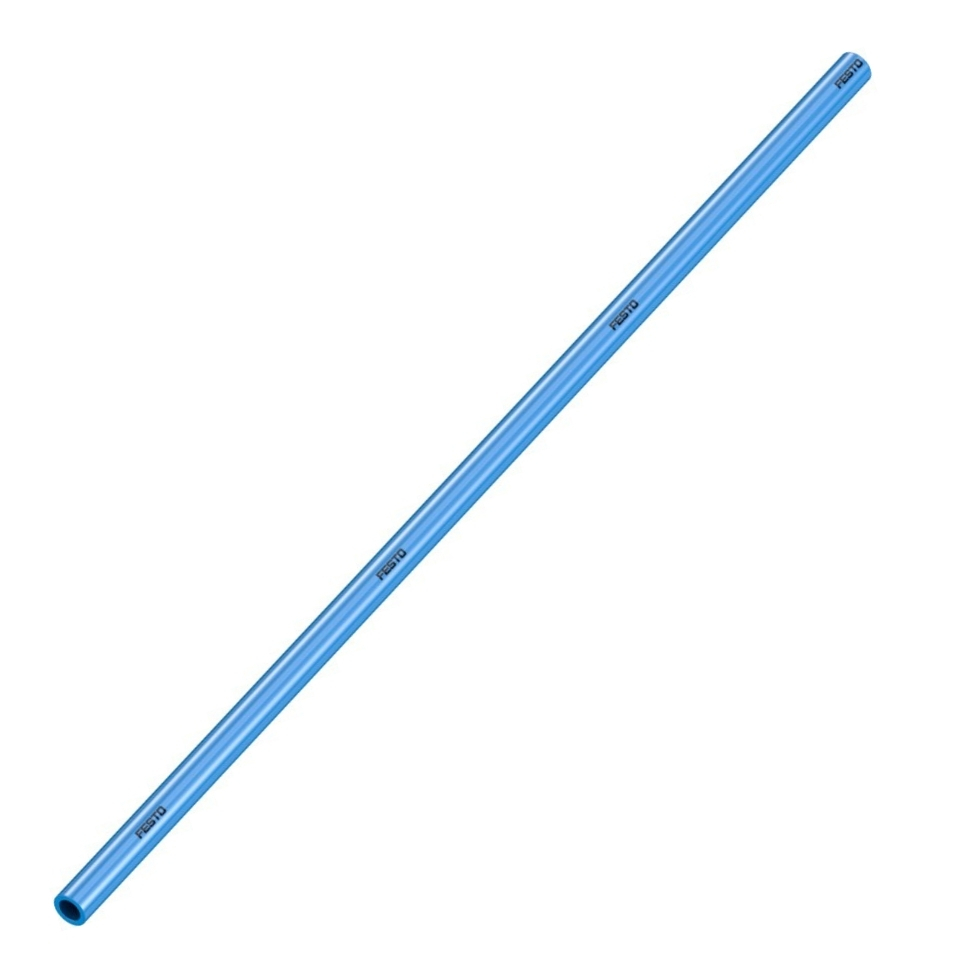

FESTO PUN-H-12X2-BL - Plastic Tubing | Part No. 197387
The FESTO PUN-H-12X2-BL is a premium plastic pneumatic tubing manufactured from ether-based TPE-U (Polyurethane). Designed for compressed air systems, it offers excellent flexibility, hydrolysis resistance, and long service life.
- Mã SP:PUN-H-12X2-BL
Thông tin chi tiết
FESTO PUN-H-12X2-BL - Plastic Tubing | Part No. 197387
The FESTO PUN-H-12X2-BL is a high-performance pneumatic tubing developed for industrial automation and compressed air applications. Manufactured from ether-based TPE-U (Polyurethane), it provides outstanding resistance to hydrolysis, excellent flexibility, and reliable performance even in demanding operating environments.
With an outside diameter of 12 mm and an inside diameter of 8 mm, the tubing is compatible with standard push-in pneumatic fittings. Its optimized flexibility and excellent bend resistance make it ideal for dynamic applications such as cable carriers (energy chains), robotic systems, packaging machinery, and automated production lines.
The tubing supports compressed air according to ISO 8573-1:2010 and can also be used with non-freezing water. It complies with RoHS, meets UL94 HB flammability requirements, and is approved by TÜV, ensuring reliable operation in industrial environments.
Key Features
- Genuine FESTO pneumatic tubing
- Part Number: 197387
- Hydrolysis-resistant TPE-U (Polyurethane)
- Suitable for energy chain applications
- Excellent flexibility
- High wear resistance
- Compatible with standard push-in fittings
- Suitable for compressed air and water
- RoHS compliant
- TÜV approved
- Long service life
- Easy installation and maintenance
Applications
- Industrial automation
- Pneumatic control systems
- Packaging machinery
- Assembly lines
- Robotic systems
- Machine tools
- Food processing equipment
- Compressed air distribution
- Energy chain applications
- Factory automation
Technical Specifications
| Specification | Value |
| Brand | FESTO |
| Model | PUN-H-12X2-BL |
| Part Number | 197387 |
| Product Type | Plastic Pneumatic Tubing |
| Material | TPE-U (Polyurethane, Ether-Based) |
| Outer Diameter | 12 mm |
| Inner Diameter | 8 mm |
| Flow-Related Bending Radius | 62 mm |
| Minimum Bending Radius | 33 mm |
| Tubing Characteristics | Suitable for energy chains |
| Operating Pressure | -0.95 to 10 bar (temperature dependent) |
| Operating Pressure (Entire Temperature Range) | -0.95 to 6 bar |
| Operating Pressure (Water) | Max. 0.3 MPa at 0–60°C |
| Operating Medium | Compressed Air (ISO 8573-1:2010 [7:-:-]), Water (non-freezing) |
| Ambient Temperature | -35°C to +60°C |
| Pneumatic Connection | For push-in connector, 12 mm OD |
| Approval | TÜV |
| Certificate Number | B 013277 0527 00 |
| Flammability Rating | UL94 HB |
| LABS (PWIS) Compliance | VDMA24364-B2-L |
| Li-ion Battery Manufacturing | Suitable (F1a) |
| Cleanroom Suitability | Static installation (ISO 14644-14) |
| Food Industry Suitability | See supplementary material information |
| Product Weight | 0.0729 kg/m |
| Color | Blue |
| Shore Hardness | D 52 ±3 |
| Material Compliance | RoHS Compliant |
Data sheet: PDF
